Stripline Isolators
Couplers are commonly used to allocate/synthesize RF signal power according to a certain degree of coupling, including 6dB, 10dB, 15dB, 30dB couplers, etc. Our company has a complete range of directional couplers, which have the characteristics of wide operating frequency band, low standing wave coefficient, low insertion loss, high power, and low intermodulation.
Description
| Model | Frequency | Band Width | Insertion | Isolation | VSWR | Operating | Reverse | Size | Connector |
| No. | Range(GHz) | (MHz) | Loss(dB.Max) | (dB.Min) | (Max) | Temperature(℃) | Power(W) | L*W*H (mm) | Type |
| MTG0102B | 0.13-0.17 | 4 | 0.4 | 23 | 1.20 | -10~+60 | 20 | 51*51*15 | TAB |
| 0.17-0.25 | 10 | 0.3 | 25 | 1.20 | |||||
| MTG0102B-150 | 0.13-0.17 | 4 | 0.4 | 23 | 1.20 | -10~+60 | 150 | 51*59*15 | TAB |
| 0.17-0.25 | 10 | 0.3 | 25 | 1.20 | |||||
| MTG0302 | 0.15-0.2 | 4 | 0.3 | 23 | 1.20 | -10~+60 | 20 | 50*52*19 | TAB |
| 0.2-0.35 | 20 | 0.4 | 20 | 1.25 | |||||
| 0.35-0.6 | 70 | 0.3 | 20 | 1.20 | -30~+70 | ||||
| MTG0302-100 | 0.15-0.2 | 4 | 0.4 | 20 | 1.20 | -10~+60 | 100 | 50*60*19 | TAB |
| 0.2-0.3 | 20 | 0.4 | 20 | 1.25 | |||||
| 0.3-0.6 | 70 | 0.3 | 20 | 1.20 | -30~+70 | ||||
| MTG0402F | 0.16-0.22 | 4 | 0.4 | 20 | 1.25 | -10~+60 | 50 | 45*45*13 | TAB |
| 0.22-0.35 | 20 | 0.3 | 23 | 1.20 | |||||
| 0.37-0.5 | Full | 0.4 | 20 | 1.25 | -30~+70 | ||||
| 0.47-0.6 | Full | 0.3 | 21 | 1.20 | |||||
| 0.5-0.8 | 100 | 0.3 | 23 | 1.20 | |||||
| MTG0402G | 0.2-0.3 | 6 | 0.4 | 23 | 1.20 | -10~+60 | 50 | 44*45.5*15.6 | TAB |
| 0.3-0.4 | 20 | 0.3 | 23 | 1.20 | -30~+70 | ||||
| 0.37-0.5 | Full | 0.4 | 20 | 1.25 | |||||
| 0.47-0.6 | Full | 0.3 | 21 | 1.20 | |||||
| 0.5-0.8 | 100 | 0.3 | 23 | 1.20 | |||||
| MTG0402E-200 | 0.3-0.5 | 5 | 0.3 | 30 | 1.15 | -10~+60 | 200 | 42*53.6*13 | TAB |
| 0.4-0.5 | 20 | 0.3 | 25 | 1.15 | -30~+70 | ||||
| MTG0402B | 0.3-0.35 | 10 | 0.4 | 20 | 1.25 | -15~+60 | 20 | 35*38*13 | TAB |
| 0.35-0.5 | 10 | 0.3 | 25 | 1.15 | -30~+70 | ||||
| 0.4-0.47 | Full | 0.35 | 20 | 1.20 | |||||
| 0.4-0.6 | 100 | 0.4 | 19 | 1.25 | |||||
| 0.6-1.2 | 100 | 0.3 | 23 | 1.20 | |||||
| 200 | 0.4 | 19 | 1.25 | ||||||
| MTG0402B-C | 0.25-0.35 | 4 | 0.3 | 23 | 1.20 | -30~+70 | 20 | 35*38*13 | TAB |
| 0.35-0.45 | 10 | 0.3 | 25 | 1.15 | |||||
| 0.4-0.6 | 20 | 0.3 | 25 | 1.20 | |||||
| MTG0402B1-100 | 0.3-0.35 | 10 | 0.5 | 20 | 1.25 | -15~+60 | 100~150 | 35*46*13 | TAB |
| 0.35-0.5 | 10 | 0.3 | 25 | 1.15 | -30~+70 | ||||
| 0.5-1.0 | 30 | 0.3 | 25 | 1.15 | |||||
| 0.4-0.47 | Full | 0.35 | 20 | 1.20 | |||||
| 0.4-0.6 | 100 | 0.4 | 19 | 1.25 | |||||
| 0.6-1.2 | 100 | 0.3 | 23 | 1.20 | |||||
| 200 | 0.4 | 19 | 1.25 | ||||||
| 0.698-0.96 | Full | 0.6 | 16 | 1.40 | |||||
| 0.728-0.96 | Full | 0.5 | 18 | 1.30 | |||||
| 0.7-1.0 | Full | 0.65 | 15 | 1.45 | |||||
| MTG0802 | 0.4-0.6 | 10 | 0.4 | 23 | 1.20 | -15~+60 | 20 | 30*33*12 | TAB |
| 0.8-1.4 | 70 | 0.25 | 25 | 1.15 | -30~+70 | ||||
| 200 | 0.4 | 20 | 1.25 | -30~+70 | |||||
| MTG0902B | 0.6-0.8 | 10 | 0.4 | 20 | 1.20 | -30~+70 | 10 | 20*20*8.6 | TAB |
| 0.8-1.2 | 30 | 0.3 | 25 | 1.20 | |||||
| 70 | 0.4 | 20 | 1.25 | ||||||
| 1.2-2.2 | 100 | 0.3 | 23 | 1.20 | |||||
| 1.7-2.7 | 200 | 0.3 | 23 | 1.20 | |||||
| MTG0902AS | 0.8-2.7 | 25 | 0.6 | 50 | 1.20 | -30~+70 | 10 | 41*21*8.6 | TAB |
| 0.99-1.13 | Full | 0.8 | 40 | 1.25 | |||||
| MTG102A | 0.6-0.7 | 10 | 0.3 | 23 | 1.20 | -40~+85 | 100 | 25.4*31.7*6.8 | TAB |
| 0.7-1.0 | 25 | 0.25 | 25 | 1.15 | |||||
| 100 | 0.5 | 20 | 1.25 | ||||||
| 1.7-2.2 | 70 | 0.3 | 23 | 1.20 | |||||
| 200 | 0.4 | 21 | 1.20 | ||||||
| 400 | 0.5 | 20 | 1.25 | ||||||
| MTG102A1 | 0.35-0.43 | 4 | 0.3 | 23 | 1.20 | -30~+70 | 10 | 25.4*25.4*10 | TAB |
| 0.43-0.8 | 20 | 0.3 | 23 | 1.20 | |||||
| 0.8-1.0 | 30 | 0.2 | 25 | 1.15 | |||||
| 1.0-2.7 | 100 | 0.3 | 25 | 1.20 | -40~+85 | ||||
| 1.7-2.7 | 400 | 0.4 | 20 | 1.25 | |||||
| MTG102A1-100 | 0.35-0.43 | 4 | 0.3 | 25 | 1.20 | -30~+70 | 100 | 25.4*31.7*10 | TAB |
| 0.43-0.8 | 20 | 0.3 | 25 | 1.20 | |||||
| 0.8-1.0 | 30 | 0.2 | 25 | 1.15 | |||||
| 1.0-2.7 | 100 | 0.3 | 25 | 1.20 | -40~+85 | ||||
| 1.7-2.7 | 400 | 0.4 | 20 | 1.25 | |||||
| MTG102A2S | 0.35-0.4 | 10 | 0.7 | 45 | 1.20 | -10~+70 | 100 | 54*32*10 | TAB |
| 0.4-0.6 | 10 | 0.6 | 50 | 1.20 | |||||
| 0.6-1.0 | 30 | 0.6 | 50 | 1.15 | -30~+70 | ||||
| MTG102F3 | 1.565-1.586 | Full | 0.3 | 25 | 1.15 | -40~+85 | 10 | 14.8*16.5*7.8 | TAB |
| 1.574-1.61 | Full | 0.3 | 25 | 1.15 | |||||
| 1.6-1.63 | Full | 0.3 | 25 | 1.15 | |||||
| 2.7-3.8 | 200 | 0.3 | 23 | 1.20 | |||||
| 3.1-3.6 | Full | 0.4 | 20 | 1.25 | |||||
| 3.4-3.8 | Full | 0.4 | 20 | 1.25 | |||||
| MTG102K6 | 1.5-1.8 | 25 | 0.4 | 20 | 1.25 | -40~+85 | 10 | 10*10*6 | TAB |
| 1.614-1.618 | 4 | 0.3 | 25 | 1.20 | |||||
| 1.8-2.8 | 50 | 0.3 | 23 | 1.20 | |||||
| MTG202B | 0.8-1.3 | 30 | 0.3 | 23 | 1.20 | -40~+85 | 10 | 19*19*8 | TAB |
| 1.3-1.7 | 100 | 0.3 | 23 | 1.20 | |||||
| 1.7-4.2 | 30 | 0.2 | 25 | 1.15 | |||||
| 100 | 0.3 | 23 | 1.15 | ||||||
| 1.8-2.2 | Full | 0.4 | 20 | 1.25 | |||||
| 2.3-2.7 | Full | 0.3 | 20 | 1.25 | |||||
| 3.1-3.6 | Full | 0.4 | 20 | 1.25 | |||||
| 3.3-3.8 | Full | 0.4 | 20 | 1.25 | |||||
| MTG202B1 | 1.7-2.7 | 70 | 0.3 | 23 | 1.15 | -40~+85 | 10 | 19*19*5.6 | TAB |
| MTG202B1-100 | 1.7-2.7 | 70 | 0.3 | 23 | 1.15 | -40~+85 | 100 | 19*25.4*5.6 | TAB |

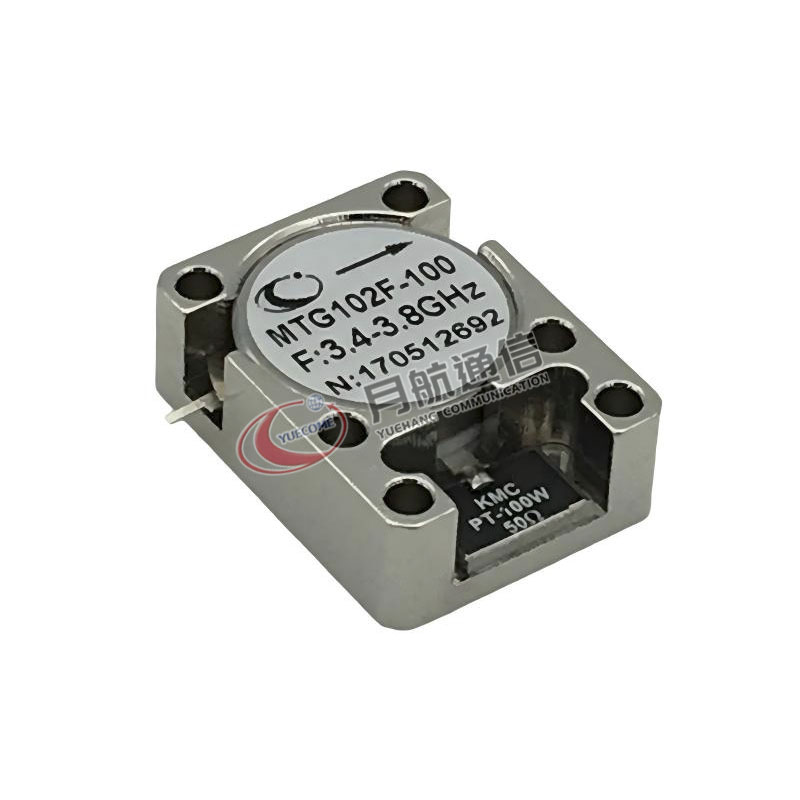

| MTG102F-100 | 0.8-1.3 | 30 | 0.3 | 23 | 1.20 | -40~+85 | 100 | 19*25.4*8 | TAB |
| 1.3-1.7 | 100 | 0.3 | 23 | 1.20 | |||||
| 1.7-4.2 | 30 | 0.2 | 25 | 1.15 | |||||
| 200 | 0.3 | 23 | 1.20 | ||||||
| 1.8-2.2 | Full | 0.4 | 20 | 1.25 | |||||
| 2.3-2.7 | Full | 0.3 | 20 | 1.25 | |||||
| 3.1-3.6 | Full | 0.4 | 20 | 1.25 | |||||
| 3.3-3.8 | Full | 0.4 | 20 | 1.25 | |||||
| MTG202D1 | 1.7-4.0 | 30 | 0.3 | 25 | 1.20 | -40~+85 | 10 | 12.7*12.7*7.2 | TAB |
| 70 | 0.4 | 23 | 1.20 | ||||||
| 2.5-2.7 | Full | 0.3 | 21 | 1.20 | |||||
| 3.1-3.6 | Full | 0.4 | 20 | 1.25 | |||||
| MTG202E | 2.0-4.0 | 200 | 0.3 | 23 | 1.20 | -30~+70 | 10 | 18*25*10 | TAB |
| 400 | 0.4 | 20 | 1.25 | ||||||
| 400 | 0.4 | 20 | 1.25 | ||||||
| MTG202H3 | 2.2-5.0 | 100 | 0.3 | 23 | 1.20 | -40~+85 | 10 | 11.5*13*7.2 | TAB |
| 2.7-5.0 | 300 | 0.4 | 20 | 1.25 | |||||
| MTG402 | 3.5-7.0 | 300 | 0.3 | 25 | 1.20 | -40~+80 | 10 | 16*23*9 | TAB |
| 800 | 0.4 | 23 | 1.20 | ||||||
| MTG402A | 3.3-7.0 | 500 | 0.3 | 23 | 1.20 | -40~+80 | 10 | 16*23*9.5 | TAB |
| MTG402S | 3.4-7.0 | 300 | 0.5 | 50 | 1.20 | -40~+80 | 10 | 32*26*10.5 | TAB |
| MTG402E | 4.0-7.0 | 300 | 0.3 | 25 | 1.20 | -40~+80 | 10 | 14*22*9.5 | TAB |
| 600 | 0.4 | 23 | 1.20 | ||||||
| MTG402M | 4.0-6.0 | 200 | 0.3 | 23 | 1.20 | -40~+80 | 10 | 12.7*12.7*6.4 | TAB |
| MTG502 | 5.0-7.0 | 200 | 0.3 | 25 | 1.20 | -40~+80 | 10 | 10*18*8 | |
| MTG502A | 4.5-7.0 | 300 | 0.3 | 25 | 1.20 | -40~+80 | 10 | 12*20*9.5 | TAB |
| 600 | 0.4 | 23 | 1.20 | ||||||
| MTG502C1 | 5.0-8.0 | 300 | 0.3 | 25 | 1.20 | -40~+80 | 10 | 12*20*6 | TAB |
| 600 | 0.3 | 20 | 1.25 | ||||||
| MTG502E | 3.6-5.5 | 50 | 0.3 | 23 | 1.20 | -40~+80 | 20 | 8.8*16.5*6.9 | TAB |
| 5.5-7.0 | 200 | 0.3 | 23 | 1.20 | |||||
| MTG702E | 7-18 | 300 | 0.3 | 25 | 1.20 | -40~+80 | 5 | 12.7*12.7*6.5 | TAB |
| 2000 | 0.4 | 20 | 1.25 | ||||||
| 1000 | 0.4 | 23 | 1.20 | ||||||
| MTG902B | 5.5-16 | 300 | 0.3 | 25 | 1.20 | -40~+80 | 5 | 8.9*15*7.8 | TAB |
| 16-20 | 1000 | 0.4 | 20 | 1.25 | |||||
| MTG902BS | 7.0-20 | 500 | 0.5 | 50 | 1.20 | -40~+80 | 5 | 17.8*15*7.8 | TAB |
| MTG1002A | 7.0-20 | 300 | 0.3 | 25 | 1.20 | -40~+80 | 5 | 9*16*6.6 | TAB |
| 1000 | 0.4 | 23 | 1.20 | ||||||
| MTG1002C | 8.0-20 | 300 | 0.3 | 23 | 1.20 | -40~+80 | 5 | 8.9*12.5*6.5 | TAB |
| 1000 | 0.4 | 20 | 1.20 | ||||||
| MTG1202 | 9-22 | 100 | 0.3 | 23 | 1.20 | -40~+80 | 5 | 6.5*12.7*6.8 | TAB |
| MTG1402 | 11-22 | 200 | 0.3 | 23 | 1.20 | -40~+80 | 5 | 6*12.7*6.8 | TAB |
| 1000 | 0.4 | 20 | 1.25 | -40~+80 | 5 | ||||
| MTG1402A | 17-22 | 1000 | 0.5 | 20 | 1.25 | -40~+85 | 5 | 6.35*12.7*4.5 | TAB |
| 22-32 | 2000 | 0.6 | 18 | 1.30 | |||||
| MTG2030A-W | 26-36 | 2000 | 0.6 | 18 | 1.30 | -40~+85 | 5 | 12*5*12.8 | TAB |
- High isolation degree
- Low insertion loss
- Polarization extraction ratio
- High with stand power
- High stability and reliability
- Fiber laser
- Fiber optical sensing
- Fiber optical amplifier
- Research in the field of optical communication
- Light testing instruments, etc
