Coaxial Isolators
Couplers are commonly used to allocate/synthesize RF signal power according to a certain degree of coupling, including 6dB, 10dB, 15dB, 30dB couplers, etc. Our company has a complete range of directional couplers, which have the characteristics of wide operating frequency band, low standing wave coefficient, low insertion loss, high power, and low intermodulation.
Description
| Model | Frequency | Band | Insertion | Isolation | VSWR | Operating | Forward | Reverse | Size | Connector |
| No. | Range(GHz) | Width(MHz) | Loss(dB.Max) | (dB.Min) | (Max) | Temperature(℃) | Power(W.Max) | Power (W) | L*W*H(mm) | Type |
| MTG0101F-100 | 0.1-0.16 | 5 | 0.3 | 20 | 1.20 | -10~+70 | 400 | 50~250 | 80*80*31 | N or L29 |
| 0.16-0.25 | 10 | 0.3 | 23 | 1.20 | ||||||
| 40 | 0.4 | 20 | 1.25 | |||||||
| MTG0101F1 | 0.088-0.108 | 20 | 0.6 | 18 | 1.30 | 0~+60 | 40 | 10~20 | 41*65*20 | SMA or N |
| 0.136-0.174 | 38 | 0.5 | 20 | 1.25 | ||||||
| 0.14-0.2 | 20 | 0.4 | 23 | 1.20 | ||||||
| MTG0101-A | 0.14-0.16 | 4 | 0.4 | 20 | 1.20 | -10~+70 | 150 | 10~20 | 50.5*53*22 | SMA or N |
| 0.16-0.2 | 4 | 0.3 | 23 | 1.20 | ||||||
| 0.2-0.3 | 20 | 0.3 | 20 | 1.20 | ||||||
| 0.14-0.16 | 4 | 0.4 | 20 | 1.20 | -10~+70 | 200 | 100 | 50.5*63*22 | SMA or N | |
| MTG0101-A100 | 0.16-0.2 | 4 | 0.3 | 23 | 1.20 | |||||
| 0.2-0.3 | 20 | 0.3 | 20 | 1.20 | ||||||
| MTG0301A | 0.2-0.3 | 10 | 0.3 | 23 | 1.20 | -10~+70 | 100 | 10~20 | 52*57.5*22 | SMA or N |
| 0.3-0.4 | Full | 0.35 | 18 | 1.25 | -10~+70 | |||||
| 0.4-0.52 | Full | 0.25 | 20 | 1.25 | -30~+70 | |||||
| 0.4-1.4 | 100 | 0.4 | 20 | 1.25 | -30~+70 | |||||
| MTG0301A-100 | 0.2-0.3 | 20 | 0.3 | 20 | 1.20 | -10~+70 | 200 | 100 | 52*67.5*22 | SMA or N |
| 0.3-0.4 | Full | 0.35 | 18 | 1.25 | -30~+70 | |||||
| 0.4-0.52 | Full | 0.3 | 20 | 1.25 | -30~+70 | |||||
| 0.4-1.4 | 200 | 0.4 | 20 | 1.25 | -30~+70 | |||||
| MTG0301S-100 | 0.14-0.18 | 4 | 0.8 | 50 | 1.20 | -10~+70 | 200 | 100 | 104*57.5*22 | SMA or N |
| 0.18-0.25 | 10 | 0.8 | 50 | 1.20 | ||||||
| 0.25-0.35 | 20 | 0.6 | 50 | 1.20 | ||||||
| 0.35-0.9 | 5 | 0.4 | 70 | 1.15 | -30~+70 | |||||
| 10 | 0.5 | 65 | 1.20 | |||||||
| 20 | 0.6 | 50 | 1.20 | |||||||
| MTG0401B | 0.25-0.3 | 4 | 0.4 | 20 | 1.20 | -10~+70 | 200 | 10~20 | 35*38*20 | SMA or N |
| 0.3-0.4 | 10 | 0.3 | 23 | 1.20 | -30~+70 | |||||
| 0.4-0.6 | 20 | 0.3 | 25 | 1.15 | ||||||
| MTG0401B-100 | 0.25-0.3 | 4 | 0.4 | 20 | 1.20 | -10~+70 | 200 | 100 | 35*48*20 | SMA or N |
| 0.3-0.4 | 10 | 0.3 | 23 | 1.20 | ||||||
| 0.4-0.6 | 20 | 0.3 | 25 | 1.15 | ||||||
| 0.47-0.6 | Full | 0.4 | 18 | 1.30 | ||||||
| MTG0701B2 | 0.698-0.96 | Full | 0.4 | 17 | 1.35 | -30~+70 | 200 | 10~20 | 35*38*20 | SMA or N |
| 0.728-0.96 | Full | 0.35 | 19 | 1.25 | ||||||
| 0.7-1.0 | Full | 0.6 | 15 | 1.45 | ||||||
| 0.95-1.25 | Full | 0.4 | 18 | 1.30 | -40~+85 | 100 | ||||
| 1.35-1.85 | Full | 0.5 | 20 | 1.25 | ||||||
| 1.4-2.0 | Full | 0.4 | 20 | 1.25 | ||||||
| 1.7-2.4 | Full | 0.35 | 20 | 1.22 | ||||||
| 1.8-2.2 | Full | 0.35 | 20 | 1.20 | ||||||
| 2.3-2.7 | Full | 0.35 | 20 | 1.20 | ||||||
| MTG0701B2-200 | 0.698-0.96 | Full | 0.4 | 17 | 1.35 | -30~+70 | 300 | 200 | 35*60*20 | N |
| 0.728-0.96 | Full | 0.35 | 19 | 1.25 | ||||||
| 0.7-1.0 | Full | 0.6 | 16 | 1.45 | ||||||
| 1.8-2.2 | Full | 0.3 | 20 | 1.25 | ||||||
| 2.3-2.7 | Full | 0.4 | 20 | 1.25 | ||||||
| MTG0401BS | 0.3-0.35 | 10 | 0.6 | 40 | 1.20 | -30~+70 | 200 | 20~200 | 70*38*20 | SMA Or N |
| 0.35-0.5 | 10 | 0.5 | 50 | 1.15 | ||||||
| 0.4-0.6 | 4 | 0.6 | 60 | 1.15 | ||||||
| 20 | 0.6 | 50 | 1.15 | |||||||
| 0.6-1.2 | 200 | 0.8 | 40 | 1.25 | ||||||
| MTG0501A | 0.4-0.7 | 50 | 0.3 | 23 | 1.20 | -30~+70 | 100 | 10~20 | 48*51*24 | SMA Or N |
| 0.7-0.96 | Full | 0.45 | 18 | 1.30 | ||||||
| 0.7-1.0 | Full | 0.5 | 16 | 1.40 | ||||||
| MTG0501A-100 | 0.4-0.7 | 100 | 0.3 | 23 | 1.20 | -30~+85 | 300 | 100 | 48*61*24 | N |
| 0.7-0.96 | Full | 0.45 | 18 | 1.30 | ||||||
| 0.7-1.0 | Full | 0.5 | 16 | 1.40 | ||||||
| MTG0801B2 | 0.6-0.8 | 20 | 0.3 | 23 | 1.15 | -40~+85 | 150 | 20 | 30*33*20 | SMA Or N |
| 0.8-1.4 | 70 | 0.25 | 25 | 1.15 | ||||||
| 200 | 0.4 | 20 | 1.25 | |||||||
| 1.4-2.7 | 300 | 0.4 | 20 | 1.25 | ||||||
| 0.8-1.4 | 200 | 0.4 | 230 | 1.25 | ||||||
| MTG0801B1 | 0.6-0.8 | 70 | 0.3 | 25 | 1.20 | -40~+85 | 150 | 20 | 30*33*15 | SMA |
| 0.8-1.4 | 200 | 0.4 | 230 | 1.25 | ||||||
| MTG0801S | 0.8-2.7 | 30 | 0.4 | 50 | 1.15 | -40~+85 | 150 | 20 | 60*33*20 | N |
| 200 | 0.5 | 40 | 1.20 | |||||||
| MTG101G | 0.4-0.6 | 10 | 0.3 | 23 | 1.20 | -10~+70 | 100 | 20 | 28*26*13 | SMA |
| 0.6-1.0 | 30 | 0.3 | 25 | 1.15 | -40~+85 | |||||
| 0.96-1.215 | Full | 0.4 | 20 | 1.25 | ||||||
| 1.2-1.8 | 200 | 0.3 | 20 | 1.25 | ||||||
| MTG101GS | 0.4-0.6 | 10 | 0.6 | 45 | 1.20 | -10~+70 | 150 | 20 | 53.4*26*13 | SMA |
| 0.6-1.0 | 30 | 0.6 | 50 | 1.15 | -40~+85 | |||||
| 0.96-1.215 | Full | 0.7 | 40 | 1.25 | ||||||
| 1.2-1.8 | 200 | 0.6 | 40 | 1.25 | ||||||
| MTG101B | 0.8-3.8 | 70 | 0.3 | 25 | 1.20 | -40~+85 | 100 | 10 | 25.4*28.5*20 | SMA or N |
| 1.0-1.6 | 200 | 0.4 | 20 | 1.25 | ||||||
| 1.6-3.8 | 400 | 0.4 | 20 | 1.25 | ||||||
| 500 | 0.5 | 18 | 1.30 | |||||||
| MTG101BS | 0.8-2.7 | 20 | 0.5 | 55 | 1.15 | -40~+85 | 100 | 10 | 50.8*28.5*20 | SMA or N |
| 1.0-2.7 | 200 | 0.6 | 45 | 1.20 | ||||||
| 1.7-2.7 | 500 | 0.8 | 35 | 1.30 | ||||||
| MTG101B1-100 | 0.8-3.8 | 70 | 0.25 | 25 | 1.15 | -40~+85 | 150 | 100 | 25.4*38.5*20 | SMA or N |
| 1.0-2.7 | 200 | 0.4 | 20 | 1.25 | ||||||
| 1.7-2.7 | 500 | 0.5 | 18 | 1.30 | ||||||
| 3.4-3.6 | Full | 0.4 | 20 | 1.25 | ||||||
| 3.3-3.8 | Full | 0.4 | 18 | 1.30 | ||||||

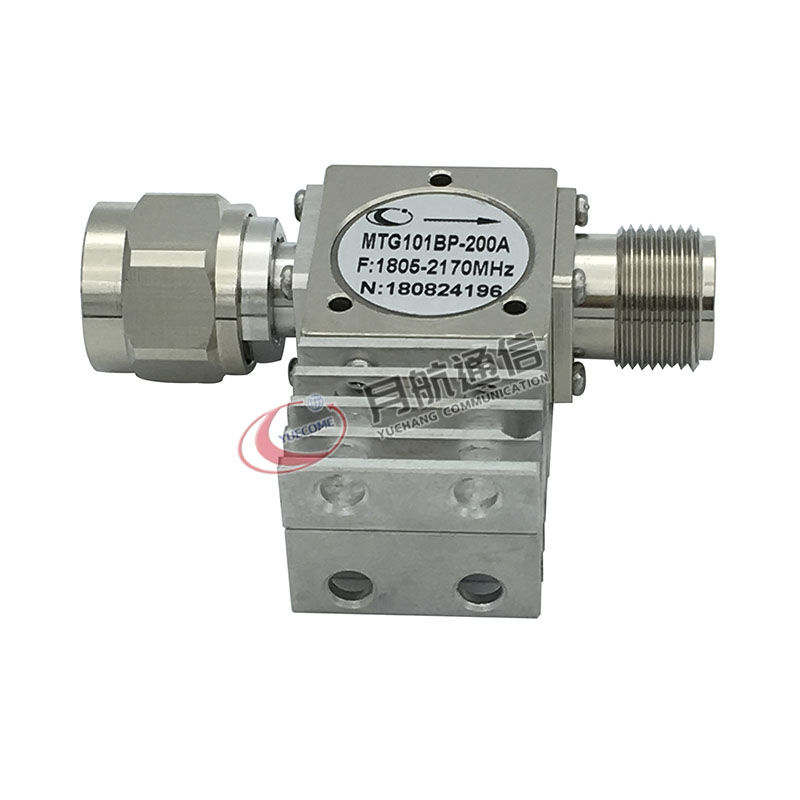

| MTG101BP-200 | 1.7-3.8 | 70 | 0.25 | 25 | 1.15 | -40~+85 | 200 | 150~200 | 25.4*48.5*20 | N |
| 1.7-2.2 | Full | 0.5 | 18 | 1.30 | ||||||
| 1.8-2.2 | Full | 0.4 | 20 | 1.25 | ||||||
| 2.3-2.7 | Full | 0.4 | 20 | 1.25 | ||||||
| 3.4-3.6 | Full | 0.4 | 20 | 1.25 | ||||||
| 3.3-3.8 | Full | 0.4 | 18 | 1.30 | ||||||
| 3.7-4.2 | Full | 0.4 | 18 | 1.30 | ||||||
| MTG201F | 1.8-3.5 | 200 | 0.3 | 23 | 1.20 | -30~+70 | 30 | 10 | 25*25*15 | SMA |
| 2.0-2.5 | Full | 0.3 | 20 | 1.25 | ||||||
| 2.0-2.7 | Full | 0.3 | 18 | 1.30 | ||||||
| MTG201B1 | 1.4-1.7 | 200 | 0.3 | 23 | 1.20 | -30~+70 | 60 | 10 | 21*21*8 | SMA |
| 1.8-3.0 | 400 | 0.4 | 20 | 1.25 | ||||||
| MTG201C | 0.8-1.0 | 30 | 0.3 | 23 | 1.20 | -30~+70 | 60 | 10 | 20*25.4*15 | SMA |
| 1.0-1.4 | 70 | 0.3 | 23 | 1.20 | ||||||
| 1.4-1.8 | 200 | 0.3 | 23 | 1.20 | ||||||
| 1.8-4.2 | 400 | 0.4 | 20 | 1.20 | ||||||
| MTG201CS | 0.8-1.0 | 30 | 0.6 | 45 | 1.20 | -30~+70 | 60 | 10 | 40*25.4*15 | SMA |
| 1.0-1.4 | 70 | 0.6 | 50 | 1.20 | ||||||
| 1.4-1.8 | 200 | 0.6 | 45 | 1.20 | ||||||
| 1.8-4.2 | 400 | 0.8 | 40 | 1.20 | ||||||
| MTG201M | 1.7-2.7 | 30 | 0.3 | 25 | 1.20 | -40~+85 | 60 | 10~20 | 19*19*10 | SMA |
| 2.7~5.0 | 200 | 0.3 | 21 | 1.20 | ||||||
| 400 | 0.4 | 20 | 1.25 | |||||||
| MTG201D | 1.8-3.0 | 200 | 0.2 | 23 | 1.10 | -25~+70 | 50 | 10 | 28*30*19 | SMA or N |
| 400 | 0.3 | 23 | 1.20 | |||||||
| 600 | 0.4 | 20 | 1.25 | |||||||
| 700 | 0.4 | 18 | 1.30 | |||||||
| 2.0-3.0 | Full | 0.3 | 19 | 1.25 | ||||||
| 1.8-3.0 | Full | 0.4 | 16 | 1.40 | ||||||
| MTG401 | 3.3-8.0 | 200 | 0.2 | 25 | 1.20 | -40~+75 | 20 | 10 | 16*23*14 | SMA |
| 600 | 0.3 | 23 | 1.20 | |||||||
| 1000 | 0.4 | 23 | 1.20 | |||||||
| MTG401B | 3.4-8.5 | 300 | 0.3 | 25 | 1.20 | -40~+75 | 20 | 10 | 16*26*15 | SMA |
| 1000 | 0.4 | 23 | 1.20 | |||||||
| MTG501S | 3.5-8.0 | 200 | 0.5 | 50 | 1.20 | -40~+75 | 50 | 20 | 32*26*15 | SMA |
| MTG801A | 7.0-16.0 | 500 | 0.3 | 25 | 1.20 | -40~+75 | 10 | 10 | 12*20*13 | SMA |
| 16-18 | 1000 | 0.4 | 20 | 1.25 | ||||||
| MTG801F | 6.5-16 | 500 | 0.3 | 25 | 1.20 | -40~+75 | 10 | 10 | 12*20*13 | SMA |
| 16-20 | 1000 | 0.4 | 20 | 1.25 | ||||||
| MTG801FS | 6.5-16 | 500 | 0.6 | 50 | 1.20 | -40~+75 | 10 | 10 | 24*20*13 | SMK |
| 16-27 | 1000 | 0.8 | 40 | 1.25 | -40~+75 | 10 | 10 | 24*20*13 | SMK | |
| MTG801F9 | 20-32 | 2000 | 0.6 | 20 | 1.25 | -40~+75 | 10 | 10 | 12*20*13 | 2.92 |
| MTG2030A | 18-36 | 4000 | 0.6 | 18 | 1.30 | -40~+75 | 10 | 10 | 12*15*12.7 | 2.92 |
- High isolation degree
- Low insertion loss
- Polarization extraction ratio
- High with stand power
- High stability and reliability
- Fiber laser
- Fiber optical sensing
- Fiber optical amplifier
- Research in the field of optical communication
- Light testing instruments, etc
Reviews (0)
Related products
Broadband Isolators
Couplers are commonly used to allocate/synthesize RF signal power according to a certain degree of coupling, including 6dB, 10dB, 15dB, 30dB couplers, etc. Our company has a complete range of directional couplers, which have the characteristics of wide operating frequency band, low standing wave coefficient, low insertion loss, high power, and low intermodulation.
Stripline Isolators
Couplers are commonly used to allocate/synthesize RF signal power according to a certain degree of coupling, including 6dB, 10dB, 15dB, 30dB couplers, etc. Our company has a complete range of directional couplers, which have the characteristics of wide operating frequency band, low standing wave coefficient, low insertion loss, high power, and low intermodulation.
Waveguide Isolators
Our company's ferrite isolators in this series have a frequency range of 80MHz~40GHz and are widely used in power amplifier modules, system integration, radar, electronic countermeasures, aviation, navigation, medical equipment, IoT intelligent recognition, instruments and meters, broadcasting and television fields due to their small size, wide frequency band, stable performance, wide temperature range (-55~+125 ° C), high isolation, low loss, low standing wave, high intermodulation, and high power; The product variety is complete, and the supply cycle is short. Customization is also possible according to special customer requirements.

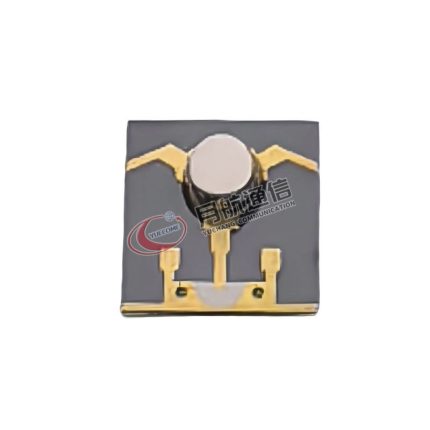

Microstrip Isolators
Our company's ferrite isolators in this series have a frequency range of 80MHz~40GHz and are widely used in power amplifier modules, system integration, radar, electronic countermeasures, aviation, navigation, medical equipment, IoT intelligent recognition, instruments and meters, broadcasting and television fields due to their small size, wide frequency band, stable performance, wide temperature range (-55~+125 ° C), high isolation, low loss, low standing wave, high intermodulation, and high power; The product variety is complete, and the supply cycle is short. Customization is also possible according to special customer requirements.

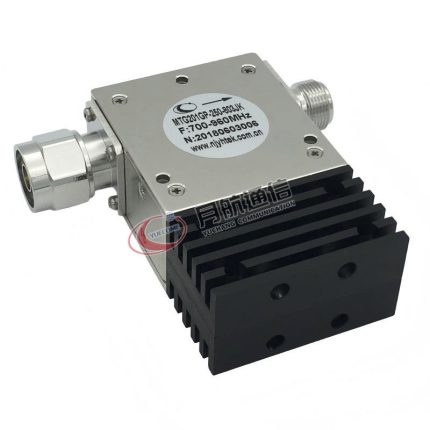

High Power Isolators
Our company's ferrite isolators in this series have a frequency range of 80MHz~40GHz and are widely used in power amplifier modules, system integration, radar, electronic countermeasures, aviation, navigation, medical equipment, IoT intelligent recognition, instruments and meters, broadcasting and television fields due to their small size, wide frequency band, stable performance, wide temperature range (-55~+125 ° C), high isolation, low loss, low standing wave, high intermodulation, and high power; The product variety is complete, and the supply cycle is short. Customization is also possible according to special customer requirements.

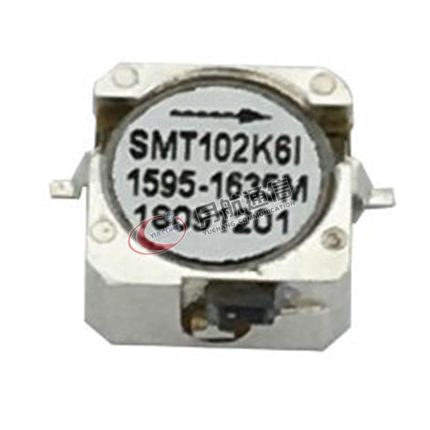

Surface Mount Isolators
