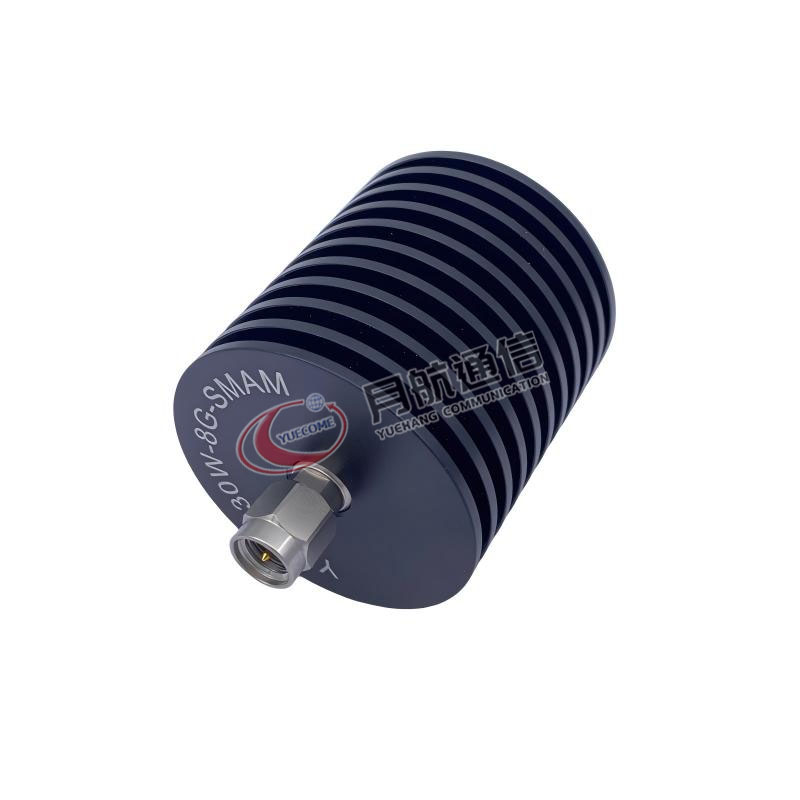

The test load has the characteristics of low emission coefficient and high carrying power. High power coaxial loads are mainly used to absorb the power of RF or microwave systems, and can be used as false loads for antennas and terminals for transmitters. Our company’s series of high-power coaxial loads have the characteristics of wide operating frequency band, low standing wave coefficient, good resistance to pulse and burnout.
The test load has the characteristics of low emission coefficient and high carrying power.
High power coaxial loads are mainly used to absorb the power of RF or microwave systems, and can be used as false loads for antennas and terminals for transmitters. Our company’s series of high-power coaxial loads have the characteristics of wide operating frequency band, low standing wave coefficient, good resistance to pulse and burnout.
Main products and technical characteristics
| Model No | YHTL-1/8W-03-SMA/M |
 |
| Frequency Range | DC -3GHz | |
| Power | 1/8W | |
| RF Connector | SMA Male | |
| VSWR max | one point one five | |
| Impedance | 50 Ω |
| Model No | YHTL-1/8W-06-SMA/M |
 |
| Frequency Range | DC -6GHz | |
| Power | 1/8W | |
| RF Connector | SMA Male | |
| VSWR max | one point two | |
| Impedance | 50 Ω |
| Model No | YHTL-5W-03-N/M |
 |
| Frequency Range | DC -3GHz | |
| Power | 2W/5W | |
| RF Connector | N-Male | |
| VSWR max | one point two | |
| Impedance | 50 Ω |
| Model No | YHTL-10W-03-N/M |
 |
| Frequency Range | DC -3GHz | |
| Power | 10W | |
| RF Connector | N-Male | |
| VSWR max | one point two | |
| Impedance | 50 Ω |
| Model No | YHTL-25W-03-N/M |
 |
| Frequency Range | DC -3GHz | |
| Power | 25W | |
| RF Connector | N-Male | |
| VSWR max | one point two | |
| Impedance | 50 Ω |
| Model No | YHTL-50W-03-N/M |
 |
| Frequency Range | DC -3GHz | |
| Power | 50W | |
| RF Connector | N-Male | |
| VSWR max | one point two | |
| Impedance | 50 Ω |
| Model No | YHTL-100W-03-N/M |
 |
| Frequency Range | DC -3GHz | |
| Power | 100W | |
| RF Connector | N-Male | |
| VSWR max | one point two | |
| Impedance | 50 Ω |
| Model No | YHTL-200W-03-N/M |
 |
| Frequency Range | DC -3GHz | |
| Power | 200W | |
| RF Connector | N-Male | |
| VSWR max | one point two | |
| Impedance | 50 Ω |
| Model No | YHTL-10W-03-D/M |
 |
| Frequency Range | DC -3GHz | |
| Power | 10W | |
| RF Connector | DIN-Male | |
| VSWR max | one point two | |
| Impedance | 50 Ω |
| Model No | YHTL-25W-03-D/M |
 |
| Frequency Range | DC -3GHz | |
| Power | 25W | |
| RF Connector | DIN-Male | |
| VSWR max | one point two | |
| Impedance | 50 Ω |
| Model No | YHTL-50W-03-D/M |
 |
| Frequency Range | DC -3GHz | |
| Power | 50W | |
| RF Connector | DIN-Male | |
| VSWR max | one point two | |
| Impedance | 50 Ω |
| Model No | YHTL-100W-03-D/M |
 |
| Frequency Range | DC -3GHz | |
| Power | 100W | |
| RF Connector | DIN-Male | |
| VSWR max | one point two | |
| Impedance | 50 Ω |
