The test load has the characteristics of low emission coefficient and high carrying power. High power coaxial loads are mainly used to absorb the power of RF or microwave systems, and can be used as false loads for antennas and terminals for transmitters. Our company’s series of high-power coaxial loads have the characteristics of wide operating frequency band, low standing wave coefficient, good resistance to pulse and burnout.
The test load has the characteristics of low emission coefficient and high carrying power.
High power coaxial loads are mainly used to absorb the power of RF or microwave systems, and can be used as false loads for antennas and terminals for transmitters. Our company’s series of high-power coaxial loads have the characteristics of wide operating frequency band, low standing wave coefficient, good resistance to pulse and burnout.
 | Model No | Attenuation | Frequency range (Fre. Range): DC-3GHz | |
| YHAT-2W-03-03-N | 3 ± 0.3 dB | Power: 2W | ||
| YHAT-2W-03-06-N | 6 ± 0.5 dB | Maximum standing wave ratio (VSWR max): 1.2 | ||
| YHAT-2W-03-10-N | 10 ± 0.5 dB | Impedance: 50 Ω | ||
| YHAT-2W-03-15-N | 15 ± 0.8 dB | RF connector: N (M-F) | ||
| YHAT-2W-03-20-N | 20 ± 1.0 dB | Temperature: -20~+70 | ||
| YHAT-2W-03-30-N | 30 ± 1.0 dB | RoHS |
 | Model No | Attenuation | Frequency range (Fre. Range): DC-3GHz | |
| YHAT-10W-03-03-N | 3 ± 0.3 dB | Power: 10W | ||
| YHAT-10W-03-06-N | 6 ± 0.5 dB | Maximum standing wave ratio (VSWR max): 1.2 | ||
| YHAT-10W-03-10-N | 10 ± 0.5 dB | Impedance: 50 Ω | ||
| YHAT-10W-03-15-N | 15 ± 0.8 dB | RF connector: N (M-F) | ||
| YHAT-10W-03-20-N | 20 ± 1.0 dB | Temperature: -20~+70 | ||
| YHAT-10W-03-30-N | 30 ± 1.0 dB | RoHS |
 | Model No | Attenuation |
| YHAT-25W-03-03-N | 3 ± 0.3 dB | |
| YHAT-25W-03-05-N | 5 ± 0.5 dB | |
| YHAT-25W-03-06-N | 6 ± 0.5 dB | |
| YHAT-25W-03-10-N | 10 ± 0.5 dB | |
| YHAT-25W-03-15-N | 15 ± 0.8 dB | |
| YHAT-25W-03-20-N | 20 ± 1.0 dB | |
| YHAT-25W-03-30-N | 30 ± 1.0 dB | |
| Power: 25W | ||
| Frequency range (Fre. Range): DC-3GHz | ||
| Maximum standing wave ratio (VSWR max): 1.2 | ||
| Impedance: 50 Ω | ||
| RF connector: N-Male to N-Female | ||
| Temperature: -20~+70 RoHS | ||
 | Model No | Attenuation |
| YHAT-50W-03-03-N | 3 ± 0.3 dB | |
| YHAT-50W-03-05-N | 5 ± 0.5 dB | |
| YHAT-50W-03-06-N | 6 ± 0.5 dB | |
| YHAT-50W-03-10-N | 10 ± 0.5 dB | |
| YHAT-50W-03-15-N | 15 ± 0.8 dB | |
| YHAT-50W-03-20-N | 20 ± 1.0 dB | |
| YHAT-50W-03-25-N | 25 ± 1.0 dB | |
| Power: 50W | YHAT-50W-03-30-N | 30 ± 1.0 dB |
| Frequency range (Fre. Range): DC-3GHz | YHAT-50W-03-35-N | 35 ± 1.5 dB |
| Maximum standing wave ratio (VSWR max): 1.2 | YHAT-50W-03-40-N | 40 ± 2.0dB |
| Impedance: 50 Ω | YHAT-50W-03-50-N | 50 ± 2.5 dB |
| RF connector: N-Male to N-Female | YHAT-50W-03-60-N | 60 ± 3.0 dB |
| Temperature: -20~+70 | RoHS | |
 | Model No | Attenuation |
| YHAT-100W-03-03-N | 3 ± 0.3 dB | |
| YHAT-100W-03-05-N | 5 ± 0.5 dB | |
| YHAT-100W-03-06-N | 6 ± 0.5 dB | |
| YHAT-100W-03-10-N | 10 ± 0.5 dB | |
| YHAT-100W-03-15-N | 15 ± 0.8 dB | |
| YHAT-100W-03-20-N | 20 ± 1.0 dB | |
| YHAT-100W-03-25-N | 25 ± 1.0 dB | |
| Power: 100W | YHAT-100W-03-30-N | 30 ± 1.0 dB |
| Frequency range (Fre. Range): DC-3GHz | YHAT-100W-03-35-N | 35 ± 1.5 dB |
| Maximum standing wave ratio (VSWR max): 1.2 | YHAT-100W-03-40-N | 40 ± 2.0dB |
| Impedance: 50 Ω | YHAT-100W-03-50-N | 50 ± 2.5 dB |
| RF connector: N-Male to N-Female | YHAT-100W-03-60-N | 60 ± 3.0 dB |
| Temperature: -20~+70 | RoHS | |

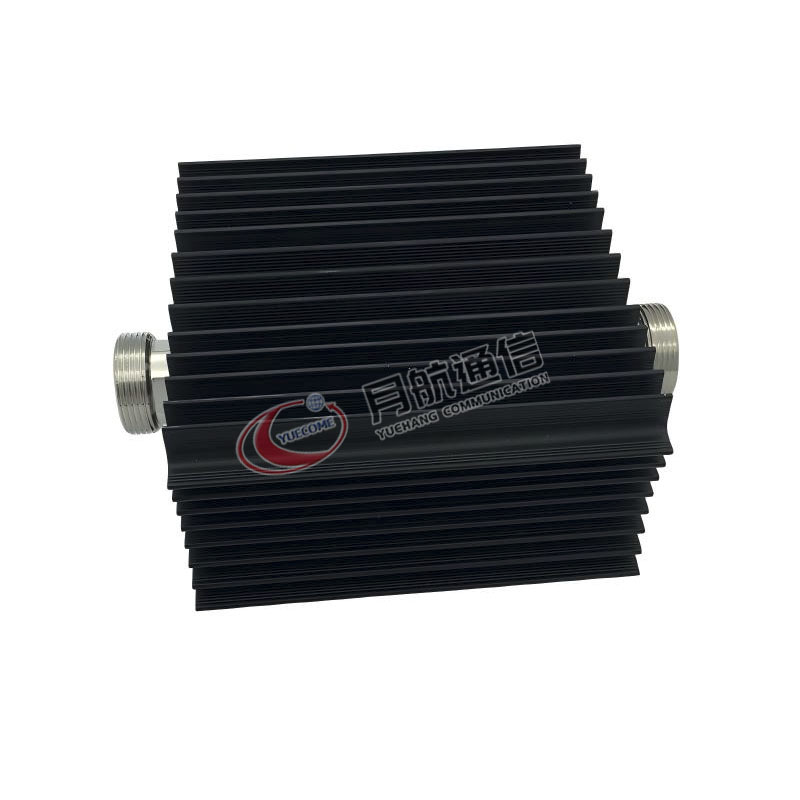

 | Model No | Attenuation |
| YHAT-100W-03-03-D | 3 ± 0.3 dB | |
| YHAT-100W-03-05-D | 5 ± 0.5 dB | |
| YHAT-100W-03-06-D | 6 ± 0.5 dB | |
| YHAT-100W-03-10-D | 10 ± 0.5 dB | |
| YHAT-100W-03-15-D | 15 ± 0.8 dB | |
| YHAT-100W-03-20-D | 20 ± 1.0 dB | |
| YHAT-100W-03-25-D | 25 ± 1.0 dB | |
| Power: 100W | YHAT-100W-03-30-D | 30 ± 1.0 dB |
| Frequency range (Fre. Range): DC-3GHz | YHAT-100W-03-35-D | 35 ± 1.5 dB |
| Maximum standing wave ratio (VSWR max): 1.2 | YHAT-100W-03-40-D | 40 ± 2.0dB |
| Impedance: 50 Ω | YHAT-100W-03-50-D | 50 ± 2.5 dB |
| RF connector: DIN Male to DIN Female | YHAT-100W-03-60-D | 60 ± 3.0 dB |
| Temperature: -20~+70 | RoHS | |
 | Model No | Attenuation |
| YHAT-200W-03-03-N | 3 ± 0.3 dB | |
| YHAT-200W-03-05-N | 5 ± 0.5 dB | |
| YHAT-200W-03-06-N | 6 ± 0.5 dB | |
| YHAT-200W-03-10-N | 10 ± 0.5 dB | |
| YHAT-200W-03-15-N | 15 ± 0.8 dB | |
| YHAT-200W-03-20-N | 20 ± 1.0 dB | |
| YHAT-200W-03-25-N | 25 ± 1.0 dB | |
| Power: 200W | YHAT-200W-03-30-N | 30 ± 1.0 dB |
| Frequency range (Fre. Range): DC-3GHz | YHAT-200W-03-35-N | 35 ± 1.5 dB |
| Maximum standing wave ratio (VSWR max): 1.2 | YHAT-200W-03-40-N | 40 ± 2.0dB |
| Impedance: 50 Ω | YHAT-200W-03-50-N | 50 ± 2.5 dB |
| RF connector: N-Male to N-Female | SAT-200W-03-60-N | 60 ± 3.0 dB |
| Temperature: -20~+70 | RoHS | |
 | Model No | Attenuation |
| YHAT-100W-03-03-D | 3 ± 0.3 dB | |
| YHAT-100W-03-05-D | 5 ± 0.5 dB | |
| YHAT-100W-03-06-D | 6 ± 0.5 dB | |
| YHAT-100W-03-10-D | 10 ± 0.5 dB | |
| YHAT-100W-03-15-D | 15 ± 0.8 dB | |
| YHAT-100W-03-20-D | 20 ± 1.0 dB | |
| YHAT-100W-03-25-D | 25 ± 1.0 dB | |
| Power: 100W | YHAT-100W-03-30-D | 30 ± 1.0 dB |
| Frequency range (Fre. Range): DC-3GHz | YHAT-100W-03-35-D | 35 ± 1.5 dB |
| Maximum standing wave ratio (VSWR max): 1.2 | YHAT-100W-03-40-D | 40 ± 2.0dB |
| Impedance: 50 Ω | YHAT-100W-03-50-D | 50 ± 2.5 dB |
| RF connector: DIN Male to DIN Female | YHAT-100W-03-60-D | 60 ± 3.0 dB |
| Temperature: -20~+70 |
