- Wide Frequency Band
- Low Insertion Loss
- High Power, High Isolation
- Custom Design Available
- Low IPM3
- Rohs Compliant

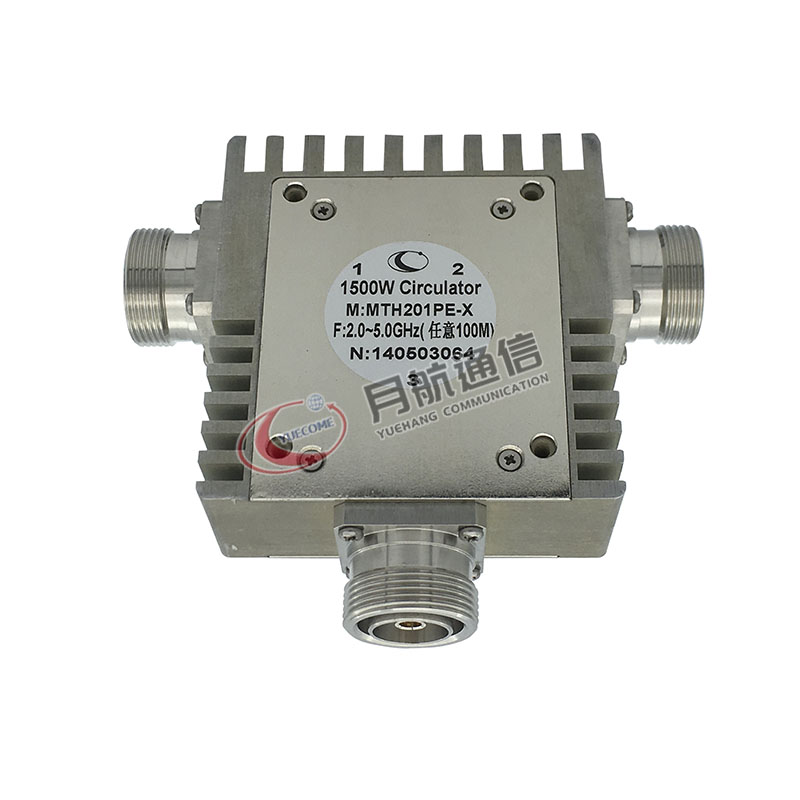

High Power Circulators
Our company’s ferrite isolators in this series have a frequency range of 80MHz~40GHz and are widely used in power amplifier modules, system integration, radar, electronic countermeasures, aviation, navigation, medical equipment, IoT intelligent recognition, instruments and meters, broadcasting and television fields due to their small size, wide frequency band, stable performance, wide temperature range (-55~+125 ° C), high isolation, low loss, low standing wave, high intermodulation, and high power; The product variety is complete, and the supply cycle is short. Customization is also possible according to special customer requirements.
Description
| Model | Frequency | Band Width | Insertion | Isolation | VSWR | Operating | Average | Size | Connector |
| No. | Range(GHz) | (MHz) | Loss(dB.Max) | (dB.Min) | (Max) | Temperature(℃) | Power(W.Max) | L*W*H(mm) | Type |
| MTH0101KP | 0.1~0.4 | 20% | 0.35 | 23 | 1.20 | -20~+85 | 2000 | 160*160*102 | L27 or L29 |
| MTH0101PW | 0.1~0.4 | 20% | 0.4 | 23 | 1.20 | -20~+85 | 10001500 | 116*116*36 | L27 or L29 |
| MTH0101F-P | 0.15~1.0 | 15% | 0.4 | 20 | 1.25 | -20~+85 | 800~1200 | 80*80*35 | N or L29 |
| MTH0601P1-X | 0.3~0.6 | 20% | 0.4 | 20 | 1.25 | -30~+85 | 600~1000 | 60*60*35 | N or L29 |
| 0.617-0.894 | Full | 0.5 | 17 | 1.35 | |||||
| 0.698-0.96 | Full | 0.4 | 18 | 1.30 | |||||
| 1.0~3.0 | 20% | 0.4 | 20 | 1.25 | |||||
| MTH201GP-X | 0.3-0.4 | Full | 0.4 | 18 | 1.25 | -10~+70 | 500 | 52*57.5*28 | N |
| 0.4-0.52 | Full | 0.4 | 20 | 1.25 | |||||
| 0.6-0.8 | Full | 0.5 | 20 | 1.25 | -20~+85 | ||||
| 0.698-0.96 | Full | 0.5 | 18 | 1.30 | |||||
| 1.0~3.0 | 15% | 0.4 | 20 | 1.25 | |||||
| MTH201FP-X | 1.5~4.0 | 40% | 0.4 | 21 | 1.20 | -20~+75 | 350 | 54*58.5*35 | N |
| MTH301BP-X | 2.0~6.0 | 200 | 0.3 | 23 | 1.20 | -20~+75 | 250 | 34*37.5*42.4 | N |
| 30% | 0.4 | 20 | 1.25 | ||||||
| MTH0502D | 0.2-0.8 | 10% | 0.4 | 20 | 1.25 | -30~+75 | 600 | 57*57*19 | TAB |
| MTH0302P | 0.2-0.8 | 10% | 0.4 | 20 | 1.25 | -30~+75 | 400 | 50*52*19 | TAB |
| MTH0402BP | 0.4-3.0 | 10% | 0.4 | 20 | 1.25 | -30~+75 | 300 | 35*38*13 | TAB |
| MTH102F-P | 2.0-6.0 | 10% | 0.4 | 20 | 1.25 | -30~+75 | 100 | 19*19*10 | TAB |
| MTH402AP | 4.5-9.0 | 10% | 0.4 | 20 | 1.25 | -30~+75 | 50 | 16*18*8.5 | TAB |
| MTH401FP | 4.5~9.0 | 10% | 0.4 | 20 | 1.20 | -30~+75 | 50 | 16*21*14 | SMA |
| MTH702EP | 9.0~18.0 | 10% | 0.4 | 20 | 1.25 | -40~+75 | 30 | 12.7*12.7*7.0 | TAB |
- High isolation degree
- Low insertion loss
- Polarization extraction ratio
- High with stand power
- High stability and reliability
- Fiber laser
- Fiber optical sensing
- Fiber optical amplifier
- Research in the field of optical communication
- Light testing instruments, etc
