Coaxial Circulators
Couplers are commonly used to allocate/synthesize RF signal power according to a certain degree of coupling, including 6dB, 10dB, 15dB, 30dB couplers, etc. Our company has a complete range of directional couplers, which have the characteristics of wide operating frequency band, low standing wave coefficient, low insertion loss, high power, and low intermodulation.
Description
| Model | Frequency | Band Width | Insertion | Isolation | VSWR | Operating | Average | Size L*W*H | Connector |
| No. | Range(GHz) | (MHz) | Loss(dB.Max) | (dB.Min) | (Max) | Temperature(℃) | Power(W.Max) | (mm) | Type |
| MTH0101F | 0.1~0.16 | 5 | 0.3 | 20 | 1.20 | -10~+70 | 400 | 80*80*31 | N or L29 |
| 0.16~0.25 | 20 | 0.3 | 23 | 1.20 | |||||
| 30 | 0.4 | 20 | 1.25 | ||||||
| MTH0101F1 | 0.88-0.108 | 20 | 0.6 | 18 | 1.30 | 0~+60 | 40 | 41*65*20 | SMA or N |
| MTH0101-A | 0.14-0.16 | 4 | 0.4 | 20 | 1.20 | -10~+70 | 150 | 50.5*53*22 | SMA or N |
| 0.16-0.2 | 4 | 0.3 | 23 | 1.20 | |||||
| 0.2-0.3 | 20 | 0.3 | 20 | 1.25 | |||||
| MTH0301A | 0.2-0.3 | 10 | 0.3 | 23 | 1.20 | -10~+70 | 200 | 52*57.5*22 | SMA or N |
| 0.3-0.4 | Full | 0.35 | 18 | 1.27 | -10~+70 | ||||
| 0.4-0.52 | Full | 0.3 | 20 | 1.25 | -30~+70 | ||||
| 0.4-1.4 | 100 | 0.4 | 20 | 1.25 | -30~+70 | ||||
| MTH0301S | 0.14-0.18 | 4 | 0.8 | 45 | 1.20 | -10~+70 | 200 | 104*57.5*22 | SMA or N |
| 0.18-0.25 | 10 | 0.8 | 50 | 1.20 | |||||
| 0.25-0.35 | 20 | 0.6 | 50 | 1.20 | |||||
| 0.35-0.9 | 5 | 0.4 | 70 | 1.15 | -30~+70 | ||||
| 10 | 0.5 | 65 | 1.20 | ||||||
| 20 | 0.6 | 50 | 1.20 | ||||||
| MTH0401B | 0.25-0.3 | 4 | 0.4 | 20 | 1.20 | -10~+70 | 200 | 35*38*20 | SMA or N |
| 0.3-0.4 | 10 | 0.3 | 23 | 1.15 | -30~+70 | ||||
| 0.4-0.6 | 20 | 0.3 | 25 | 1.20 | |||||
| 0.47-0.6 | Full | 0.4 | 18 | 1.30 | |||||

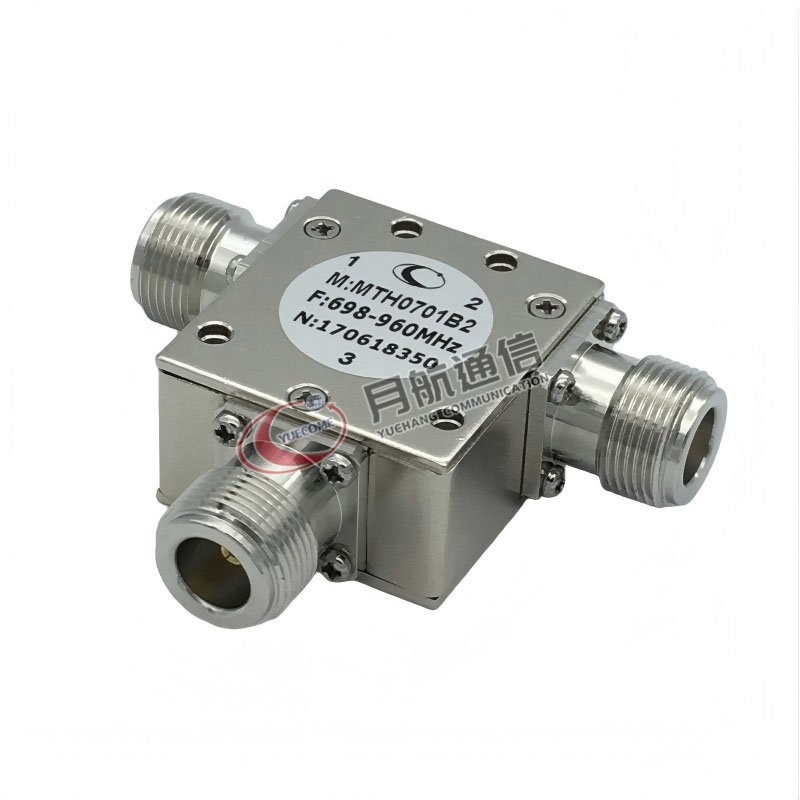

| MTH0701B2 | 0.698-0.96 | Full | 0.4 | 17 | 1.35 | -30~+70 | 200 | 35*38*20 | SMA or N |
| 0.728-0.96 | Full | 0.35 | 19 | 1.25 | |||||
| 0.7-1.0 | Full | 0.6 | 16 | 1.45 | |||||
| 0.95-1.25 | Full | 0.4 | 18 | 1.30 | |||||
| 1.35-1.85 | Full | 0.4 | 20 | 1.25 | |||||
| 1.4-2.0 | Full | 0.4 | 20 | 1.25 | |||||
| 1.8-2.2 | Full | 0.35 | 20 | 1.20 | |||||
| 2.3-2.7 | Full | 0.35 | 20 | 1.20 | |||||
| MTH0701B-300 | 1.7-2.4 | Full | 0.35 | 20 | 1.25 | -30~+70 | 300 | 35*38*20 | N |
| 1.8-2.2 | Full | 0.4 | 20 | 1.25 | |||||
| 2.3-2.7 | Full | 0.4 | 20 | 1.25 | |||||
| MTH0401BS | 0.3-0.35 | 10 | 0.6 | 40 | 1.20 | -30~+70 | 200 | 70*38*20 | N |
| 0.35-0.5 | 10 | 0.5 | 50 | 1.15 | |||||
| 0.4-0.7 | 20 | 0.6 | 50 | 1.20 | |||||
| 0.7-1.2 | 200 | 0.8 | 40 | 1.25 | |||||
| MTH0501A | 0.4-0.7 | 50 | 0.3 | 23 | 1.20 | -30~+70 | 300 | 48*51*24 | N |
| 0.6-0.8 | Full | 0.4 | 20 | 1.25 | |||||
| 0.7-0.96 | Full | 0.4 | 18 | 1.30 | |||||
| 0.7-1.0 | Full | 0.55 | 16 | 1.45 | |||||
| MTH0801B2 | 0.6-0.8 | 20 | 0.3 | 23 | 1.15 | -30~+70 | 100 | 30*33*20 | SMA or N |
| 0.8-1.4 | 70 | 0.25 | 25 | 1.15 | |||||
| 200 | 0.4 | 20 | 1.25 | ||||||
| 1.4-2.7 | 300 | 0.4 | 20 | 1.25 | |||||
| MTH0801B1 | 0.6-0.8 | 70 | 0.3 | 25 | 1.20 | -40~+85 | 100 | 30*33*15 | SMA |
| 0.8-1.4 | 200 | 0.4 | 23 | 1.25 | |||||
| MTH0801S | 0.8-2.7 | 30 | 0.4 | 50 | 1.15 | -40~+85 | 200 | 60*33*20 | SMA Or N |
| 200 | 0.5 | 40 | 1.25 | ||||||
| MTH101G | 0.4-0.6 | 10 | 0.3 | 23 | 1.20 | -10~+70 | 100 | 28*26*13 | SMA |
| 0.6-1.0 | 30 | 0.3 | 25 | 1.15 | -40~+85 | ||||
| 0.96-1.215 | Full | 0.4 | 20 | 1.25 | |||||
| 1.2-1.8 | 200 | 0.3 | 20 | 1.25 | |||||
| MTH101GS | 0.4-0.6 | 10 | 0.6 | 45 | 1.20 | -10~+70 | 150 | 53.4*26*13 | SMA |
| 0.6-1.0 | 30 | 0.6 | 50 | 1.15 | -40~+85 | ||||
| 0.96-1.215 | Full | 0.7 | 40 | 1.25 | |||||
| 1.2-1.8 | 200 | 0.6 | 40 | 1.25 | |||||
| MTH101B | 0.8-2.7 | 70 | 0.3 | 25 | 1.20 | -40~+85 | 100 | 25.4*28.5*20 | SMA Or N |
| 1.0-2.7 | 200 | 0.4 | 20 | 1.25 | |||||
| 1.7-2.7 | 500 | 0.5 | 18 | 1.30 | |||||
| MTH101BS | 0.8-2.7 | 20 | 0.5 | 55 | 1.15 | -40~+85 | 100 | 50.8*28.5*20 | SMA Or N |
| 1.0-2.7 | 200 | 0.6 | 45 | 1.20 | |||||
| 1.7-2.7 | 500 | 0.8 | 35 | 1.30 | |||||
| 1.0-2.7 | 200 | 0.4 | 20 | 1.25 | |||||
| 1.7-2.7 | 500 | 0.5 | 18 | 1.30 | |||||
| 1.8-2.2 | Full | 0.4 | 20 | 1.25 | |||||
| 2.3-2.7 | Full | 0.4 | 20 | 1.25 | |||||
| 3.4-3.6 | Full | 0.4 | 20 | 1.25 | |||||
| 3.3-3.8 | Full | 0.5 | 18 | 1.30 | |||||
| MTH201B1 | 1.4-1.7 | 200 | 0.3 | 23 | 1.20 | -40~+85 | 60 | 21*21*8 | SMA |
| 1.8-3.0 | 400 | 0.4 | 20 | 1.25 | |||||
| MTH201C | 0.8-1.0 | 30 | 0.3 | 23 | 1.20 | -30~+70 | 60 | 20*25.4*15 | SMA |
| 1.0-1.4 | 70 | 0.3 | 23 | 1.20 | |||||
| 1.4-1.8 | 200 | 0.3 | 23 | 1.20 | |||||
| 1.8-4.0 | 400 | 0.4 | 20 | 1.25 | |||||
| MTH201M | 1.7-2.7 | 30 | 0.3 | 23 | 1.20 | -40~+85 | 60 | 19*19*10 | SMA |
| 2.7~5.0 | 200 | 0.3 | 21 | 1.20 | |||||
| 400 | 0.4 | 20 | 1.25 | ||||||
| MTH201D | 1.8-3.0 | 200 | 0.2 | 23 | 1.10 | -25~+70 | 30 | 28*30*19 | SMA or N |
| 400 | 0.3 | 23 | 1.20 | ||||||
| 600 | 0.4 | 20 | 1.25 | ||||||
| 1.8-2.7 | Full | 0.4 | 18 | 1.30 | |||||
| 2-3 | Full | 0.3 | 19 | 1.26 | |||||
| MTH201F | 2.0-3.5 | 200 | 0.3 | 23 | 1.20 | -30~+70 | 20 | 25*25*15 | SMA |
| 400 | 0.4 | 20 | 1.20 | ||||||
| MTH201H | 2.0-6.0 | 200 | 0.3 | 23 | 1.20 | -30~+70 | 30 | 22*24*20 | SMA or N |
| MTH401 | 3.3-8.0 | 200 | 0.2 | 25 | 1.20 | -40~+75 | 20 | 16*21*14 | SMA |
| 600 | 0.3 | 23 | 1.20 | ||||||
| 1000 | 0.4 | 23 | 1.20 | ||||||
| MTH501S | 3.5-8.0 | 200 | 0.5 | 50 | 1.20 | -40~+75 | 30 | 32*26*13 | SMA |
| MTH1601A | 7.0-18 | 1000 | 0.3 | 20 | 1.20 | -40~+75 | 10 | 12*15*10 | SMA |
| MTH401D-N | 3.3-8.0 | 200 | 0.25 | 25 | 1.20 | -40~+75 | 20 | 20*24*18 | N or SMA |
| 1000 | 0.3 | 23 | 1.20 | ||||||
| MTH801F3-N | 8.0-12.0 | 500 | 0.3 | 21 | 1.20 | -40~+75 | 10 | 17*22*19 | N |
| 12.0-16.0 | 500 | 0.4 | 20 | 1.25 | |||||
| MTH801A | 7.0-16.0 | 500 | 0.3 | 23 | 1.20 | -40~+75 | 10 | 15*19*13 | SMA |
| 16-22.0 | 500 | 0.4 | 20 | 1.25 | |||||
| MTH801AS | 7.0-12 | 500 | 0.6 | 50 | 1.15 | -40~+75 | 10 | 30*19*13 | SMA |
| 12.0-20.0 | 500 | 0.8 | 40 | 1.20 | |||||
| MTH2030A | 22.0-36 | 4000 | 0.6 | 18 | 1.30 | -40~+75 | 5 | 12*15*12.7 | 2.92 |
- High isolation degree
- Low insertion loss
- Polarization extraction ratio
- High with stand power
- High stability and reliability
- Fiber laser
- Fiber optical sensing
- Fiber optical amplifier
- Research in the field of optical communication
- Light testing instruments, etc
